How to choose a reliable busbar product? Understanding Yilian's product strengths through copper-aluminum welding technology.

Busbars, with their combination of lightweight aluminum and high conductivity copper, have become essential components for power packs and energy storage cabinets. However, the significant differences in physical properties between aluminum and copper make them prone to common defects during welding, such as poor fusion, incomplete solder joints, delamination, and unstable conductivity. These issues directly reduce the overall pass rate of busbar products and the safety factor of the entire system.

一. Addressing the Pain Points: Causes of Common Fusion Defects in Busbar Welding

The material properties are vastly different: aluminum has a low melting point and is easily oxidized, while copper has a high thermal conductivity but is difficult to retain heat, resulting in an unbalanced heat distribution and ineffective metallurgical bonding at the interface;

Energy absorption is unbalanced: most of the energy is absorbed by the thin aluminum substrate, leaving the thick copper plate insufficiently heated, and the interfacial frictional heat generation does not meet the fusion conditions;

Oxide layer hinders adhesion: aluminum sheets naturally form a dense alumina film, while the oxide scale and impurities on the surface of the copper plate after storage and processing firmly prevent the penetration and bonding of copper and aluminum atoms.

Process parameter deviations: Inappropriate welding pressure and holding time settings; parameters that are too high will ablate the aluminum substrate, while parameters that are too low will result in insufficient energy and defects at both ends;

Tooling and welding equipment abnormalities: Welding head wear, tooling positioning misalignment, partial solid welding and partial incomplete welding of the busbar;

Inadequate workpiece pretreatment: Residual cutting oil and dust on the surface of the copper and aluminum substrates, and the humid workshop environment accelerates secondary oxidation, creating a hidden danger of weld debonding.

二. E-Link Intelligent Manufacturing: Eradicating Poor Busbar Fusion at its Source

(一) Incoming material pre-treatment and inspection to remove interface adhesion obstacles.

All batches of copper and aluminum substrates undergo surface treatment: fine grinding process to uniformly remove aluminum oxide layer and copper plate rust and impurities. Welding is carried out within 4 hours after grinding to avoid secondary oxidation in the air; different specifications of substrates are stored separately to isolate moisture and dust pollution.

(二) Tooling and equipment refined operation and maintenance to stabilize energy transmission.

Dedicated positioning tooling for the busbar is used to accurately lock the position of copper and aluminum laminations to ensure uniform force on the entire contact surface; a daily inspection log is established for the welding head, the working surface of the welding head is cleaned every day before work, and it is replaced immediately if wear occurs. Welding equipment is calibrated regularly to prevent energy transmission fluctuations.

(三) Standardized production control and standardized operation of the entire process.

Welding process on-the-job training is provided, and operators strictly implement the operation standard of "fixing the workpiece first, then starting welding, and naturally cooling after welding before removing the part"; the production workshop is kept at constant temperature and dehumidified to strictly control environmental dust and reduce welding defects caused by human error from the operation end.

(四) Long-term quality control closed loop.

locking the quality of finished products in all batches, establishing bus parameter files, archiving the best welding data by product model, and quickly adjusting parameters when changing specifications; monthly equipment maintenance, regular inspection and replacement of vulnerable parts of the main unit, welding head, and tooling; batch sampling inspection of finished products: double testing, checking welding firmness and conductivity, and reworking defective parts by tracing back the process; continuous process iteration, optimizing welding solutions according to customers' new bus specification requirements.

三. Yilian's core advantages in busbars empower the new energy industry chain.

✅ Maximum Welding Reliability: Overcomes common copper-aluminum fusion defects, ensuring no delamination on the bus weld surface, stable temperature rise under power, and suitability for the demanding operating conditions of energy storage and power lithium batteries;

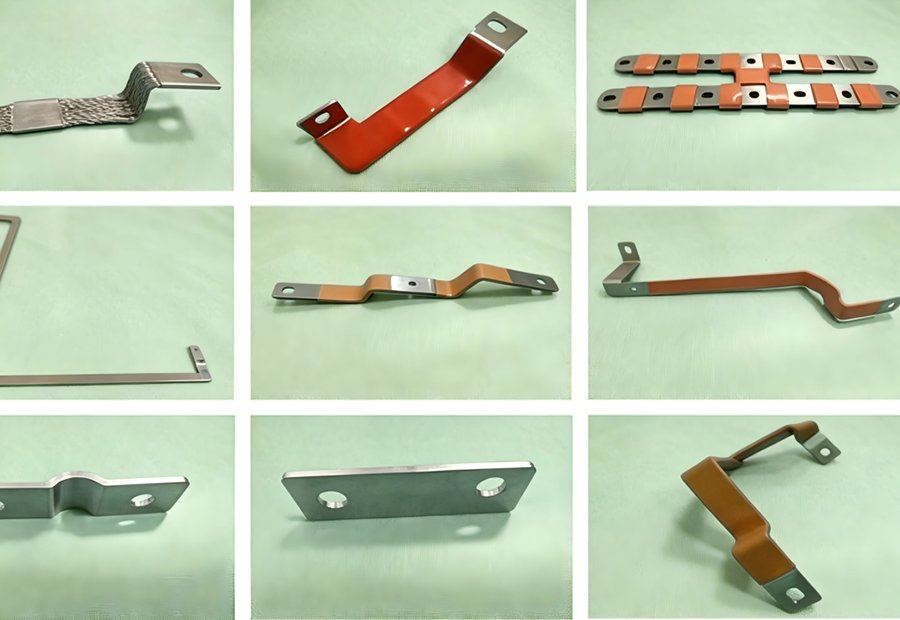

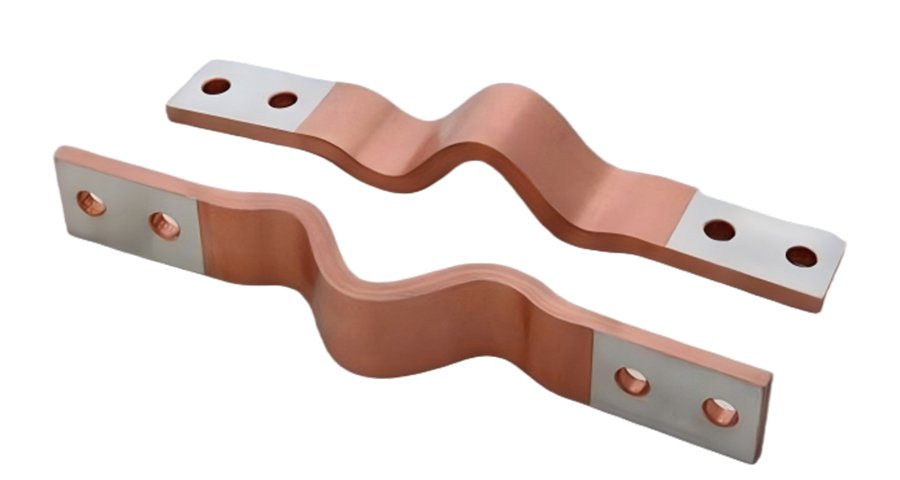

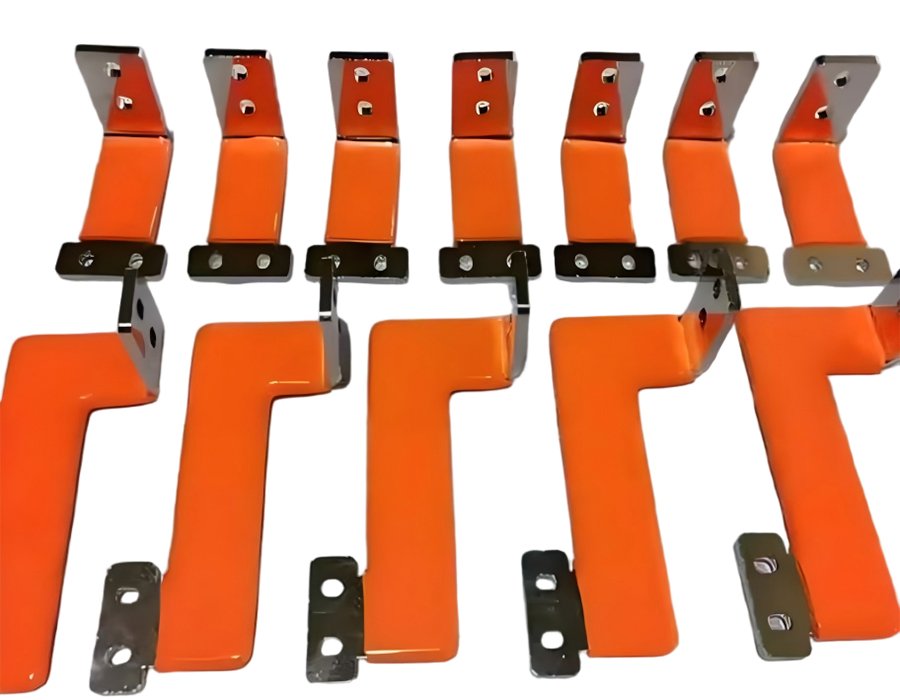

✅ Customized Flexible Production: Can process various busbars such as copper-aluminum composite, pure copper, and nickel-plated busbars as needed, with thickness, openings, and bending customized according to drawings;

✅ End-to-End Quality Certification: Full-process quality inspection from raw material intake to finished product delivery, ensuring products meet the conductivity safety standards for new energy power distribution and PACK systems;

✅ Localized and Efficient Delivery: A local production base in Shandong provides convenient service to new energy manufacturers in Shandong and nationwide, shortening delivery cycles and providing pre-sales process coordination and after-sales technical support.

The new energy storage and power battery industry is developing rapidly. As a key conductive component, the welding quality of busbars directly determines the safety of end products. Shandong Yilian New Energy has always focused on improving busbar technology, using mature copper-aluminum dissimilar metal welding solutions to help its partners avoid the risk of component failure.
